Unwind Stand / Rewind Stand

More Views

Unwind Stand / Rewind Stand | UM Motor

Related Models

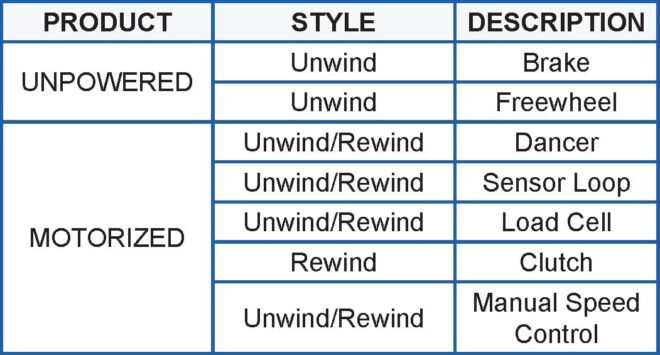

Custom Unwind/Rewind Units

The Building Blocks Of Automation

Build your own unit!
You may be able to apply for any of these additional products below.

  • Description
  • Options
  • Benefits
  • Specifications
A motorized unwind has a manual control on the unwind tower which controls the motor speed. An optical sensor keeps the material loop within the desired limits.

This is important when running a fragile material such as filter media where tension would have a negative effect on the material. It is also important when running heavy material where excess tension would reduce accuracy.
All models
  • Multiple roll unwinding
  • Air Shafts
  • Roll weights to 50 lbs.
All models
  • Quick changeover without tools
  • Long Life
  • Variable speed driver with maximum speed set point
  • Optic sensor turns motor on and off for non contact applications
  • Motor and controls are mounted inside unwind
  • 110vac
  • Includes mounting holes for easy installation
How to Order:
STYLE
U = unwind
R = rewind


TYPE
D = dancer
M = motorized
B = brake for unwind
C = clutch for rewind


SIZE
1 = bench-top
2 = floor-mounted
3 = dual side plate


SHAFT LENGTH
S = 160mm/6in.
L = 320mm/12in.
X = special


CORE SIZE
25../1in.
75mm/3in.
100mm/4in.
150mm/6in.


Example: UD1-L-75 is a bench-top, dancer-style unwind with a 320mm long shaft and a 75mm diameter core.

WARNING! UNIT MUST BE PROPERLY GUARDED AT ALL TIMES TO MEET ALL STATE, FEDERAL, AND LOCAL REQUIREMENTS
