Unwind Stand / Rewind Stand

UD Dancer

Unwind Stand / Rewind Stand

SKU: UD Dancer

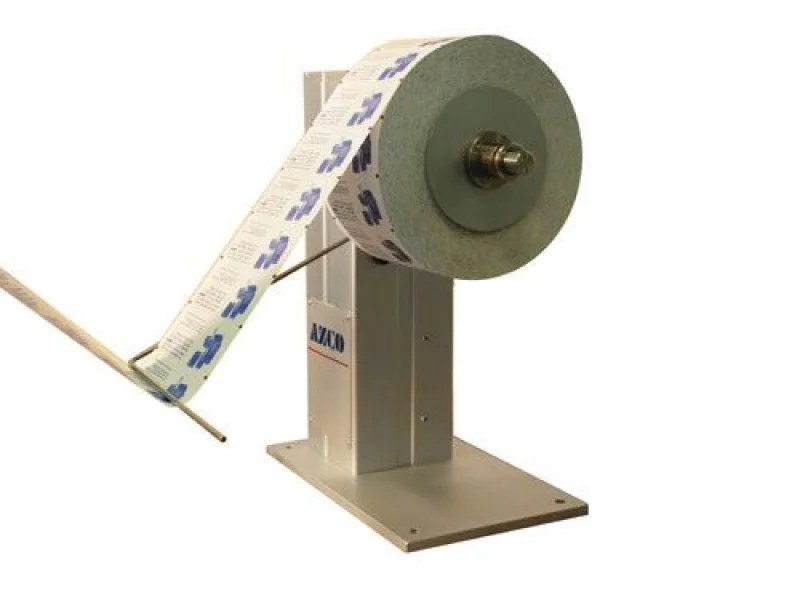

Cantilever-style unwind stands, both powered and unpowered, are available. They can be bench-mounted and are simple to use.

The Building Blocks of Automation

Build your own unit!

Standard modules can be purchased alone or in combination to build a solution that meets your unique needs.

ConveyerGuillotine KnivesPunch AssemblyRoll FeedersRotary KnivesSlitter StationStackerStandTraveling Knives

Cantilever-style unwind stands, both powered and unpowered, are available. They can be bench-mounted and are simple to use.

The standard unit can handle a roll of material with a maximum OD of 460mm/18 in., weighing up to 22kg/48.5 lb.

Powered unwind stands have a DC motor drive. The drive maintains a loop of material to maintain low tension in the web. The dancer adjusts the speed, based on its position on the web

All models

  • Quick changeover without tools
  • Long Life
  • Variable speed driver with maximum speed set point
  • Dancer assembly is supplied for low web tension application
  • Dancer adjusts the motor speed based on position of dancer
  • Motor and controls are mounted inside unwind
  • 110vac
  • Includes mounting holes for easy installation
  • Better loop control
  • Manual control adjusts motor speed
  • Low tension
  • Quick changeover; requires no tools to change roll

All models

  • Multiple roll unwinding
  • Air Shafts
  • Roll weights to 50 lbs.

How to Order:

STYLE

U = unwind

R = rewind





TYPE



D = dancer

M = motorized

B = brake for unwind

C = clutch for rewind





SIZE



1 = bench-top

2 = floor-mounted

3 = dual side plate





SHAFT LENGTH



S = 160mm/6in.

L = 320mm/12in.

X = special





CORE SIZE



25../1in.

75mm/3in.

100mm/4in.

150mm/6in.





Example: UD1-L-75 is a bench-top, dancer-style unwind with a 320mm long shaft and a 75mm diameter core.
