Unwind Stand / Rewind Stand

UB Brake

Unwind Stand / Rewind Stand

SKU: UB Brake

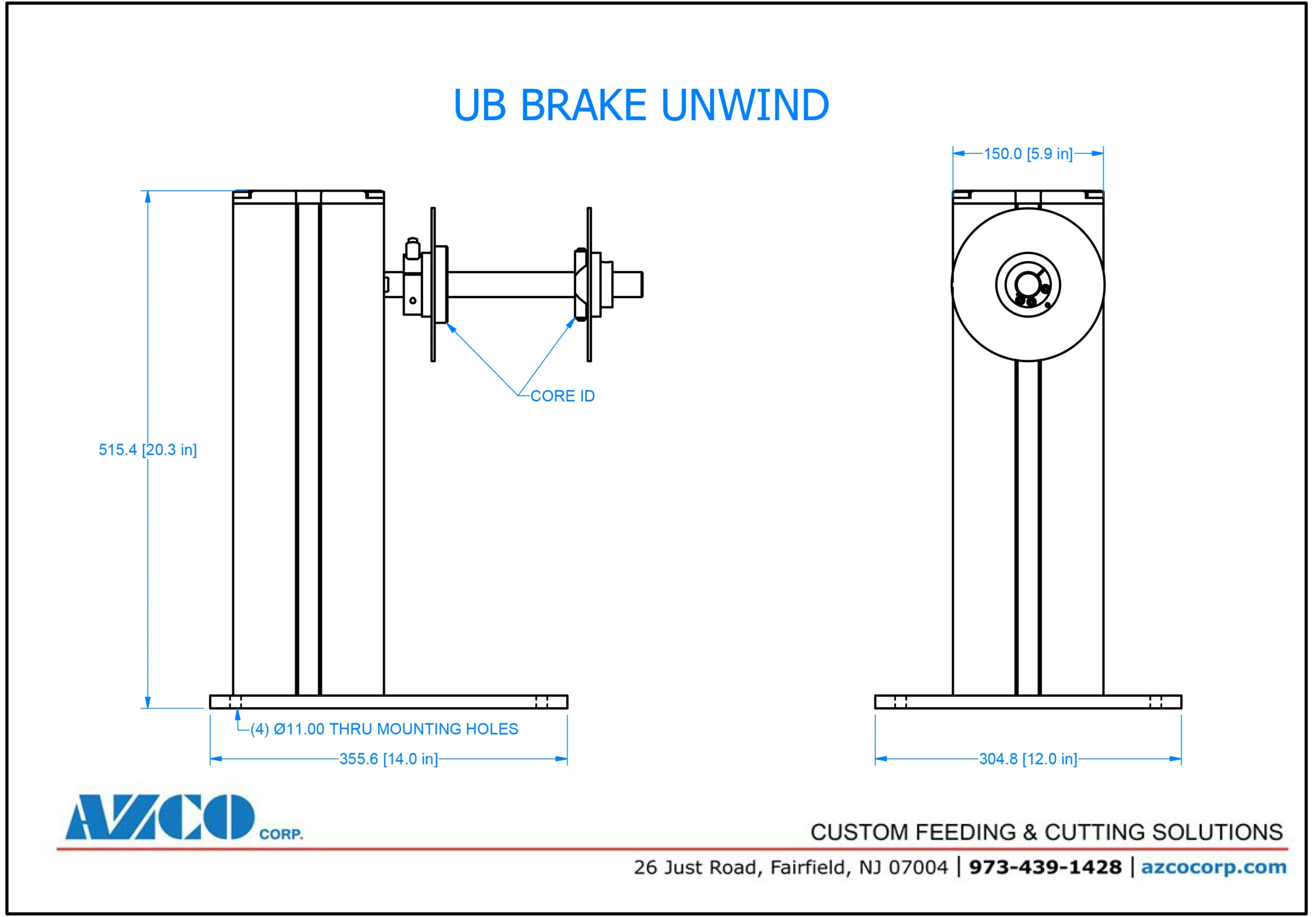

The unpowered unwind stand uses a hysteresis-type magnetic brake to control web tension. Torque control is accomplished by turning the large knurled adjustment ring. Repeatability and accuracy are excellent.

The Building Blocks of Automation

Build your own unit!

Standard modules can be purchased alone or in combination to build a solution that meets your unique needs.

ConveyerGuillotine KnivesPunch AssemblyRoll FeedersRotary KnivesSlitter StationStackerStandTraveling Knives

The unpowered unwind stand uses a hysteresis-type magnetic brake to control web tension. Torque control is accomplished by turning the large knurled adjustment ring. Repeatability and accuracy are excellent.

Benefits of this model:

  • Adjustable tension
  • Soft starts with zero slip
  • Constant torque
  • Long life
  • Excellent overload protection
  • No external power required
  • No maintenance: magnetic fields
  • Permanently sealed and lubricated ball bearings (not friction pads) create web tension

All models

  • Quick changeover without tools
  • Long Life
  • Adjustable tension manual setting
  • Low maintenance: magnetic partical brake [no wear items]

All models

  • Multiple roll unwinding
  • Air Shafts
  • Roll weights to 50 lbs.

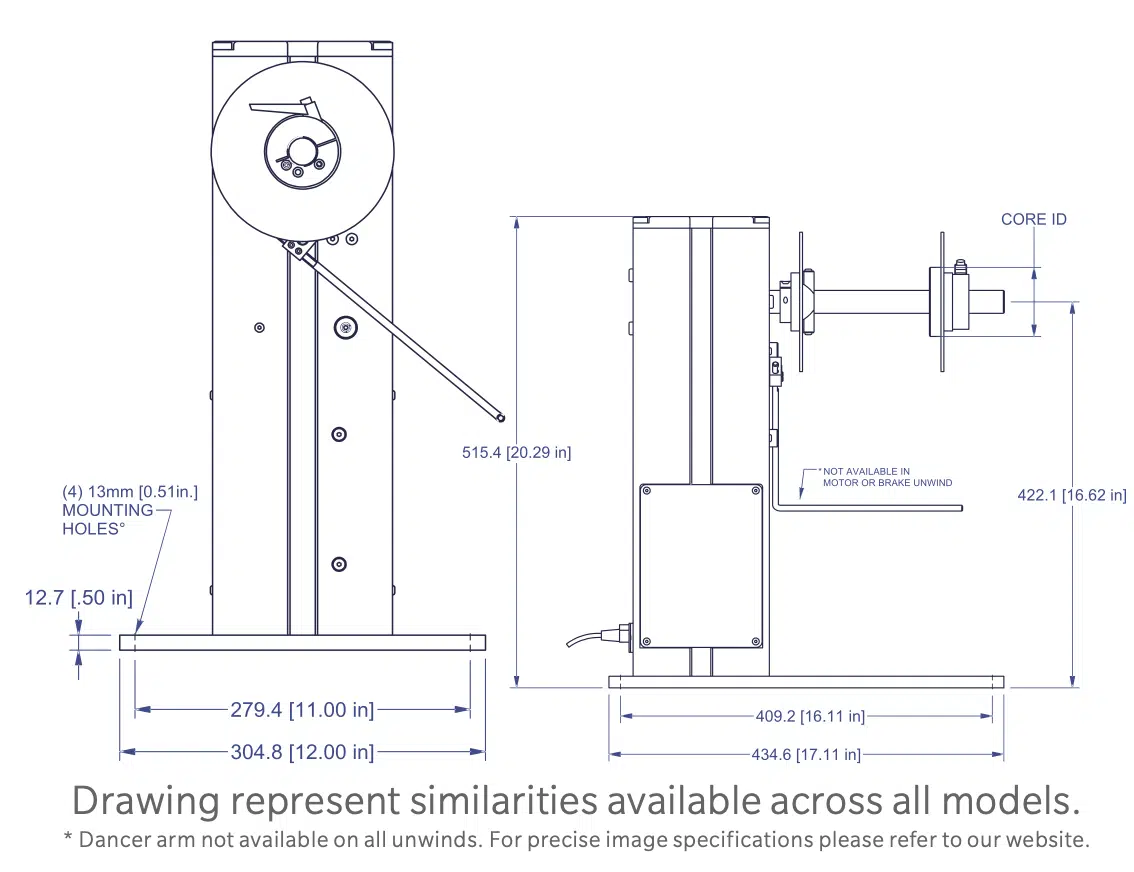

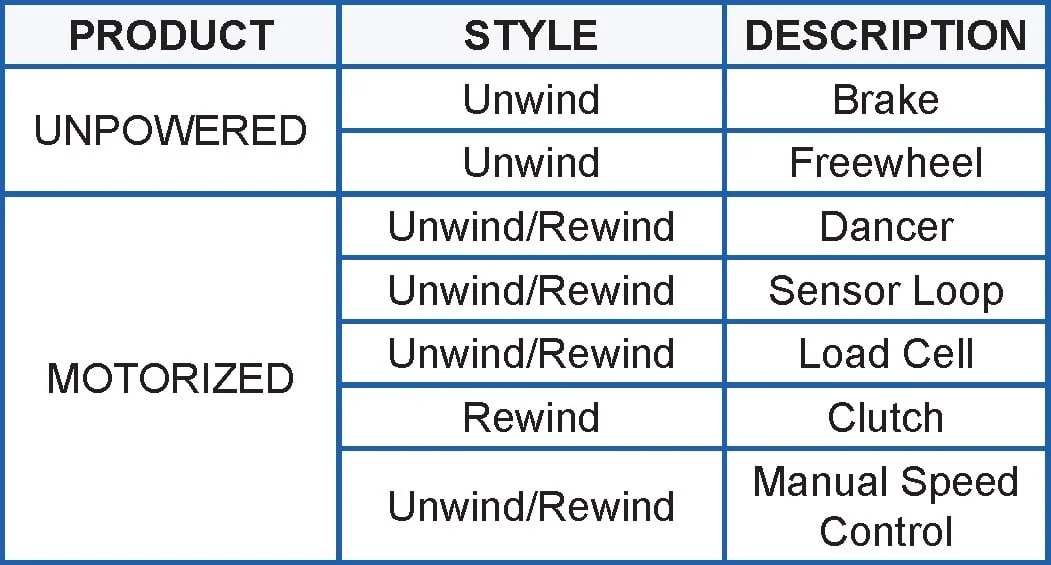

How to Order:

STYLE

U = unwind

R = rewind





TYPE



D = dancer

M = motorized

B = brake for unwind

C = clutch for rewind





SIZE



1 = bench-top

2 = floor-mounted

3 = dual side plate





SHAFT LENGTH



S = 160mm/6in.

L = 320mm/12in.

X = special





CORE SIZE



25../1in.

75mm/3in.

100mm/4in.

150mm/6in.





Example: UD1-L-75 is a bench-top, dancer-style unwind with a 320mm long shaft and a 75mm diameter core.
