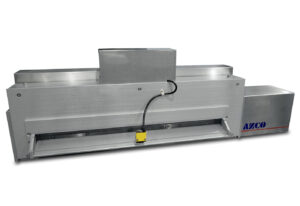

SUR-SIZE™ CUT-TO-LENGTH ASSEMBLY

SKU: FG-630

The combination of a knife assembly and a roll feeder creates a SUR-SIZE™ cut-to-length assembly. The SUR-SIZE™ cut-to-length assemblies are capable of handling a wide variety of flexible materials. The cut-to-length assembly is a reliable, simple to use, self-contained module. It is a complete unit that delivers a finished product to your specifications.

Simple and easy to use, just enter the length and quantity on the color touch screen. The unit automatically feeds, measures, cuts and counts the pieces to meet your requirements. For an automated one-shot process, this unit will feed and cut the material on demand. Clean cuts are provided by the guillotine knife assembly.

This integrated unit is a convenient package for many users who just want to plug in a power cord and air line to start their cutting project.

  • Flexible use as stand-alone unit or as in-line component
  • Easy data entry keypad
  • Reduced scrap
  • Eliminates the need for a large inventory of cut product
  • High accuracy from stepper or servo
  • 630mm [24.80″] cut width.  Recommended maximum material width is 610mm [24″]
  • Minimum length: 0.1mm [0.004″]
  • Maximum quantity count: 999,999
  • Power requirements: 110 VAC 50-60Hz
  • 40 – 90 psi [2.75 – 6 bar] compressed air
  • Accuracy: +/- 0.38mm [0.015″] or 0.1% of cut length (whichever is larger)
  • Eye registration: a fiber optic sensor will locate a register mark to cycle the unit
  • No-product sensor
  • Product verification sensor
  • Pneumatic preloaded idler roller
  • High accuracy drive to +/-.05mm/.002in
  • One-shot input and feedback output
  • Cut lengths to 55km/34 miles
  • Infeed roll unwind
  • Quantity count to 100 million
  • Outfeed conveyor
  • High speed drive package
  • I/O expansion card: 24 inputs/12 outputs
  • Servo drive package
  • Slitter attachment
  • Steel drive roller
  • Static control
  • Line speed tracking
  • Special to 66 in. wide
  • All electric

Absorbent pads, film, felt, foam, foil, gaskets, hook and loop, hose, laminates, mesh, metalized film, nonwoven, pads, paper, personal care products, PTFE, rubber, shrink tubing, tape, test strips, thin gauge metal, tubing
