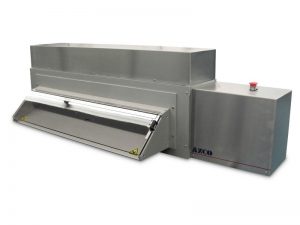

SUR-SIZE™ CUT-TO-LENGTH ASSEMBLY

SKU: FG-1000

From $32,253.00

The combination of a knife assembly and a roll feeder creates a SUR-SIZE™ cut-to-length assembly. The SUR-SIZE™ cut-to-length assemblies are capable of handling a wide variety of flexible materials. The cut-to-length assembly is a reliable, simple to use, self-contained module. It is a complete unit that delivers a finished product to your specifications.

Simple and easy to use, just enter the length and quantity on the color touch screen. The unit automatically feeds, measures, cuts and counts the pieces to meet your requirements. For an automated one-shot process, this unit will feed and cut the material on demand. Clean cuts are provided by the guillotine knife assembly.

This integrated unit is a convenient package for many users who just want to plug in a power cord and air line to start their cutting project.

  • Easy to use as stand-alone unit or as in-line component
  • Easy operator interface with a color touch pad
  • Enter lengths in either inches or metric
  • Module knife cartridge
  • On demand one-shot
  • Reduced scrap
  • Eliminates the need for a large inventory of cut product
  • Servo drive package
  • 1,000mm [39.37”] cut width.  Recommended maximum material width is 965mm [38″]
  • Minimum Length: 0.1mm/0.004″
  • Maximum Quantity Count: 999,999
  • Power requirements: 200 – 240 VAC single phase 50-60Hz, 30 amps
  • 90 psi [6 bar] clean dry air
  • Tolerance: +/-0.38mm/0.015″ or 0.1% of cut length (whichever is larger)
  • Eye registration: a fiber optic sensor will locate a register mark to cycle the unit
  • No-product sensor
  • Product verification sensor
  • Pneumatic preloaded idler roller
  • High accuracy drive to +/-.05mm/.002in
  • One-shot input and feedback output
  • Cut lengths to 55km/34 miles
  • Infeed roll unwind
  • Quantity count to 100 million
  • Outfeed conveyor
  • High speed drive package
  • I/O expansion card: 24 inputs/12 outputs
  • Hot knife to 300mm/12 in.
  • Slitter attachment
  • Steel drive roller
  • Static control
  • Line speed tracking
  • Specials to 66 in. wide
  • All electric

Absorbent pads, film, felt, foam, foil, gaskets, hook and loop, hose, laminates, mesh, metalized film, nonwoven, pads, paper, personal care products, PTFE, rubber, shrink tubing, tape, test strips, thin gauge metal, tubing

Build Your Product in Minutes From AZCO Corp.

Build & Price

SKU: FG-1000

SUR-SIZE™ CUT-TO-LENGTH ASSEMBLY

Total Price:

Drive Selection - SKU: SE-FG1000

$0.00
Servo indexing motor

Blade material - SKU: BM-GH1000D BLADE SET

$0.00
Standard D2 Includes movable blade, stationary blade, and blade shoe

Blade material - SKU: BM-GH1000C BLADE SET

$10,021.00
Carbide Includes movable blade, stationary blade, and blade shoe

Blade material - SKU: BM-GH1000S BLADE SET

$7,118.00
Stainless steel Includes movable blade, stationary blade, and blade shoe

Roller material - SKU: RM-RU

$0.00
Standard Urethane

Roller material - SKU: RM-RS-4

$746.00
Silicone

Material Handling - SKU: MH-G-4

$2,524.00
Segmented rollers

Material Handling - SKU: MH-W-4

$4,250.00
Adhesive

Material Handling - SKU: MH-ST-4

$3,832.00
Static eliminator

Power - SKU: 110VAC

$0.00
110VAC 50-60 HZ Single Phase

Power - SKU: 220VAC

$0.00
220VAC 50-60 HZ Single Phase

Replacement Guillotine Knife Assembly - SKU: GH1000D-P

$11,112.00
1000mm [39.37"] cutting area

Replacement Blade Set - SKU: GH1000D BLADE SET

$2,276.00
D2 Includes movable blade, stationary blade, and blade shoe

Jam Sensor - SKU: FG-JE-2

$1,066.00
Unit automatically shuts down when no product is sensed exiting the knife assembly

No Product Sensor - SKU: FG-NP-2

$1,066.00
Unit will automatically shut down when no product is sensed entering the rollers.

Low Product Sensor - SKU: FG-LP-2

$1,673.00
An ultrasonic sensor will monitor the roll diameter. When the roll reaches a predetermined diameter, the machine will pause.

Register Eye - SKU: NOREG

$0.00
No register eye

Register Eye - SKU: RERB-3

$3,599.00
Round beam

Register Eye - SKU: REFB-3

$3,197.00
Flat beam

Register Eye - SKU: RECE-3

$3,697.00
Color eye

Register Eye - SKU: RETB-3

$3,697.00
Through beam

Preset Recipes - SKU: RECIPE

$947.00
Allows for quick transition between multiple products.

Exit Chute - SKU: EXIT

$0.00
Standard

Exit Chute - SKU: EXITSCL-2

$1,650.00
Short cut length, for cut lengths shorter than 50.8mm[2"]
