AZCO SUR-FEED™ Roll Feeder

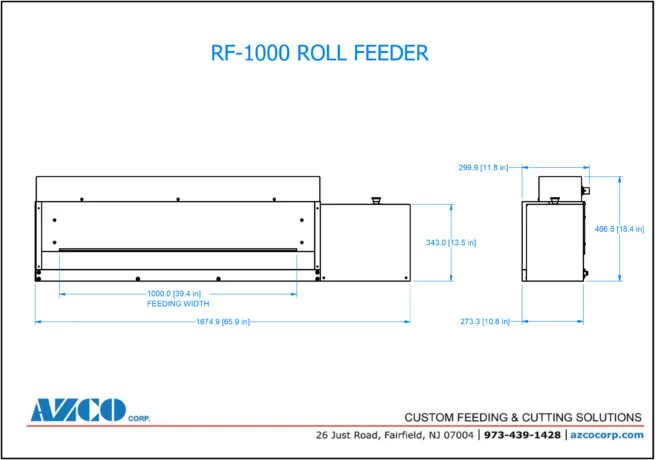

RF-1000

AZCO SUR-FEED™ Roll Feeder

SKU: RF-1000

Our large roll feeder is a high performance servo motor driven model with a pneumatically pre- loaded idler roller for handling wider, heavier materials.

The Building Blocks of Automation

Build your own unit!

Standard modules can be purchased alone or in combination to build a solution that meets your unique needs.

ConveyorGuillotine KnivesPunch AssemblyRotary KnivesSlitter StationStackerStandTraveling KnivesUnwind/Rewind

Documents

  • PLC controlled with a color touch screen control panel for easy setup and operation.
  • The unit can be operated in automatic or manual modes with a dry contact one shot input.
  • Precision ground urethane drive rollers advance the material.
  • The top idler roller is pneumatically pre-loaded – which includes a pneumatic cylinder, pressure regulator, air switch, and all necessary hosing and hardware for easier setup.
  • The rollers are turned by a high accuracy, low maintenance indexing motor.
  • Low maintenance; sealed bearings and servo motor drive system.
  • 1000mm [39.37″] web width.  Recommended maximum material width is 965mm [38”].
  • Cycle rate:  80 CPM at under 10”
  • Power requirements: 110 VAC 50-60Hz [220VAC available upon request]
  • 40-90 psi [2.75 -6 bar] compressed air
  • Accuracy: +/- 0.38mm [0.015″] or 0.1% of cut length (whichever is larger)
  • Dual drive rollers
  • Segmented rollers
  • Material flow package
  • Jam sensor
  • No-product sensor
  • Eye registration

    Get more information on this product
