This application required a combination of punch assemblies to meet specific requirements.

Material: Film


Our Solution:

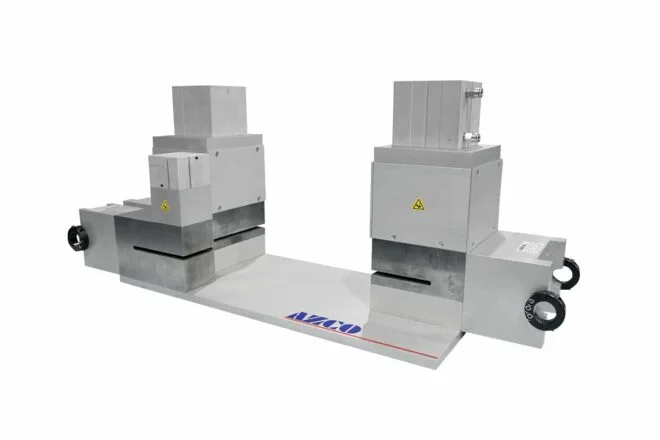

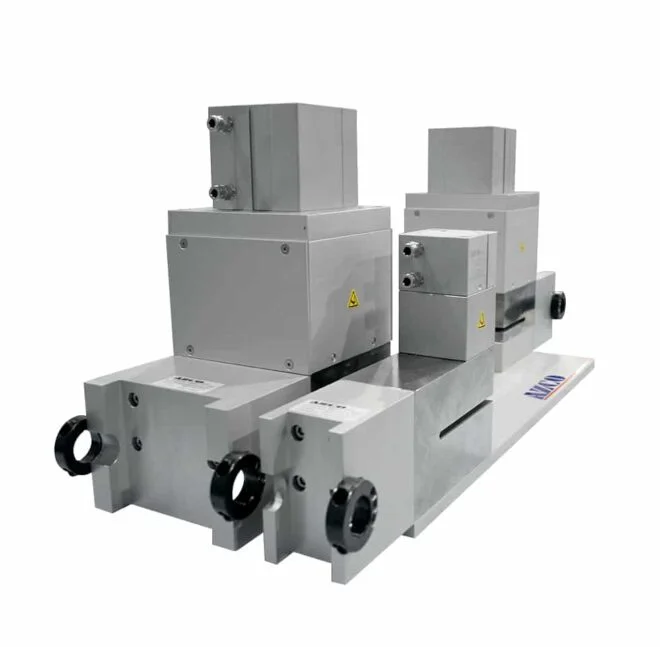

AZCO designed and manufactured punch assemblies mounted on a common framework with a slug ejection system.

  • The punch assemblies have a punch-and-die design using hardened-steel tooling that is clean-cutting and fast-acting.
  • Pneumatically operated punches are modular design and construction.
  • Mounted on a plate for the precision location of the tooling
  • The assembly has mounts that can be adjusted on rails for easy placement into an existing process.
  • Hardened and precision ground matched punch and matrix.
  • Framework is supplied in clear anodized aluminum.
  • Two UP-150 punches are half punches, approximately 98mm [4”] wide and 25.4mm [1”] wide
  • A third punch makes a tear notch and can be activated or deactivated as needed.
  • Slug ejection system is designed to work with hanging slugs.
  • Slug is mechanically pushed even with the punch plane.
