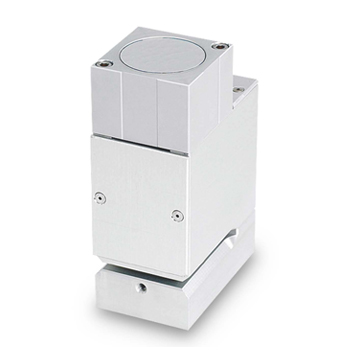

PUNCH ASSEMBLY

SKU: UP-20

From $3,616.00

Our modular punch assemblies have a punch-and-die design to make custom shaped cut-outs. Our punch units use hardened steel tooling that is clean cutting and fast acting. The assembly can be mounted in any orientation, so you can add it to any converting, processing, or assembly line in any way you see fit! Just bolt it on!

  • Clean cutting
  • Fast acting
  • Easily moved
  • Mount in any orientation
  • Modular design and construction
  • Custom sizes and configurations
  • Pneumatically operated punch
  • Can be mounted in any orientation
  • Hardened and precision ground matched punch and matrix
  • Framework is supplied in clear anodized aluminum
  • Punch and matrix will be a matched set
  • Any design that fits within a 20mm [0.8″] diameter circle
  • Centerline of punch is 38mm [1.5” ] from edge of web and can be modified to meet your requirements
  • NPT Fitting
  • 90 psi (6 bar) compressed air
  • Custom shapes
  • Extra depth throat
  • Material guides
  • Sensors
  • Larger punches available

Film, Foam, Foil, Laminates, Medical Devices, Mesh, Metalized Film, Nonwovens, Paper, PTFE, Rubber, Shrink Tubing, Tape, Thin Gauge Metal

Build Your Product in Minutes From AZCO Corp.

Build & Price

SKU: UP-20

PUNCH ASSEMBLY

Total Price:

Complex Geometry - SKU: UP-CG

$853.00
Geometry beyond a circle that fits in the punch frame

Micrometer Adjustment - SKU: UP-MA

$474.00
Precisely controls the punch depth

Air Slug Clearing System - SKU: AIRSLUG

$600.00
Uses compressed air to blow the slug clear of the die

Vacuum Slug Clearing System - SKU: VACSLUG

$2,519.00
Uses vacuum system to remove the slug

Slug Ejection System - SKU: SLUGEJEC

$726.00
Designed to work with hanging slugs

Deep Throat Punch - SKU: DEEP

$506.00
Allows material to enter the punch further into the punch assembly. Price per inch.

Inductive PNP Sensor - SKU: 20705803

$124.00
Inductive proximity sensors provide home position feedback to confirm knife position

Inductive NPN Sensor - SKU: 20705125

$90.00
Inductive proximity sensors provide home position feedback to confirm knife position
